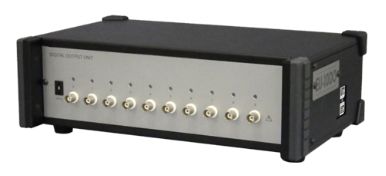

This is a digital output unit for T-ZACCS9 TS-963/-960.

Up to 10 TTL/LVTTL level digital signals can be output simultaneously based on trigger and alarm conditions set by the TS-960/TS-963.
As wiring using BNC cables is possible, it is easy to construct a system using trigger control and synchronisation with measuring instruments, test equipment and PLCs that are matched to TS-960/TS-963 measurements.

Features

• Up to 10 non-isolated TTL or LVTTL level digital signal outputs possible

• Easy connection via BNC cable

Specifications

Type	EU-10DO
Function	Trigger/alarm signal output or inter-unit synchronisation signal output according to TS-960/963 settings
Number of output point	10 points
Output	BNC connector
Output range	Non-isolated TTL output DC5V (TTL trigger level) HI (ON) level output voltage: 2.0 V min. LO (OFF) level output voltage: 0.8 V max. Non-isolated LVTTL output DC 3.3V (LVTTL trigger level) HI (ON) level output voltage: 2.0 V min. LO (OFF) level output voltage: 0.8 V max.
Max. output current	3mA MAX
Unit synchronisation signal output	Output signal frequency 10Hz
Number of connection	1 unit at maximum
Extension distance	100 m (between instruments)
Connection cable	EX connection cable(CR-89**)
External dimensions	328（W）×98（H）×183（D）mm
Weight	Approx. 3 kg
Power supply	AC100～240V 50/60Hz 86VA MAX

For more details, Please contact EPC!
