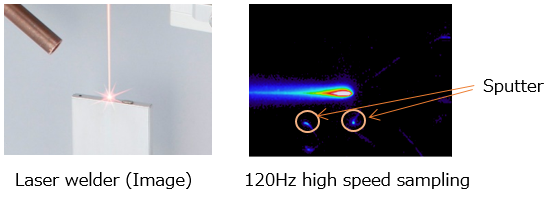

120Hz high speed sampling enables measurement of instantaneous temperature change (R550Pro).

Windowing mode enable to 120Hz high speed sampling.
You will be able to do sputter analysis and analysis of thermal impact to the neighborhood of the interested spot in laser machining or resistance welding.

120Hz ： 640×120 Windowing
60Hz ： 640×240 Windowing
30Hz ： 640×480 Full

1.2 Megapixels Infrared Thermal Imaging Camera

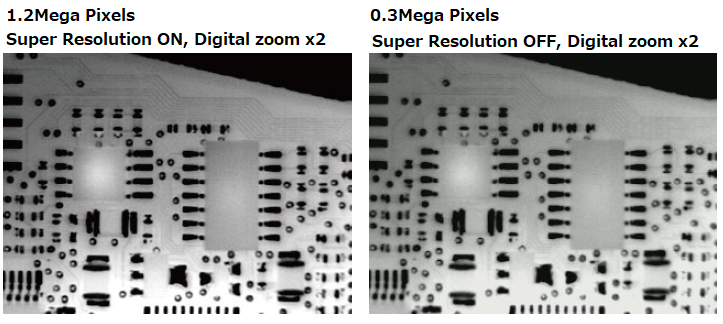

Outstanding 1280 x 960 High Resolution Thermal Image by Avio SR Technology!

Super Resolution (SR) Mode:
Recording Pixels: 1280 x 960 pixel
Spatial Resolution: equivalent to 0.58mrad *1
Standard Mode:
Recording Pixels: 640 x 480 pixel
Spatial Resolution: 0.87mrad

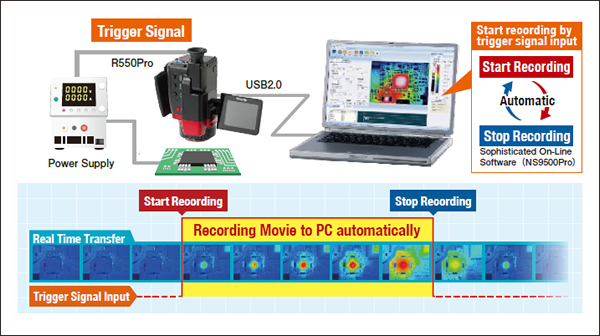

New function "Automatic Movie Recording" by external trigger input *2

Reliable data acquisition

Inputting of an external trigger signal to the camera unit enables analysis software to start movie recording automatically.
Data recording linked with test equipment and field facility is available without configuring I/O system.
